| Features |
●
|
On-the-spot
determination of machine condition using built-in Auto-Diagnostic
Software.

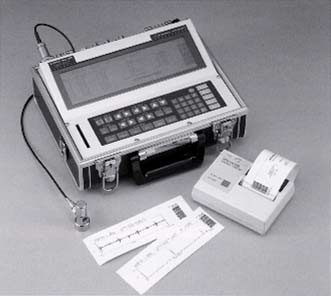

The MK-500 conducts precise vibration analysis utilizing FFT's based
on frequency analysis technology. With its auto-diagnostic software,
the MK-500 can immediately diagnose machine condition, including causes
and locations of troubled areas. The built-in field balancing software
allows on-site balancing when used with the optional high speed, high
accuracy LED sensor. The MK-500 also has all the standard vibrometer
functions, including vibration wave patterns and vibration mode conversions
through differential and integral calculations. A printed copy of
available data can be obtained by using one of the optional external
printers. The MK-500 combines the functions of a vibrometer, analyzer
and diagnostic unit in one easy-to-use package. |
| ● |
Increased
memory capacity allow multiple functions. as well as the ability to
fit a multitude of applications.
|
| 1. |
The
32K words of RAM enables the MK-500 to store up to 240 screen images.
The stored data can be transferred to a personal computer through
the standard built-in RS-232C interface. Additional screens can be
stored into optional memory cards. Each card has the capacity to hold
an additional 240 screens each, giving the MK-500 the ability to bring
back virtually unlimited data from the field. Software is available
which allows the user's personal computer to be used for filing and
secondary processing of stored data. |
| 2. |
In addition to the vibration
input, the MK-500 has the ability to take audio and voltage signal
data. The unit is equipped with a three-dimensional display to show
transient memory of 32k words or spectrum changes relative to time.
The MK-500 can be used as a multi-purpose analyzer including transient
analysis and machine resonance measurement functions.
|
| ● |
Incomparable
ease of handling is accomplished by the reduced number of keys and
the use of an interactive mode.
Using the interactive mode, the next key to be pushed is indicated
on the LCD screen, allowing the unit to be operated by anyone with
only a minimum of training. The operator isn't required to remember
complicated procedures used on conventional analyzers. |
| ● |
Extremely
compact size and battery power allow the MK-500 to be used virtually
anywhere.
The entire unit weighs only 5.0kg(11.02lbs) and can be carried
anywhere for on-the-spot diagnostics. In addition to internal battery
power, the MK-500 can utilize on-site AC or DC external power sources
if available. Screens remain stored in memory even after external
power is removed. |
