®	XR-100CR / XR-100T-CZT Vacuum Applications

Both Option A & B for vacuum chamber pressures to 10$-8$ torr.$$

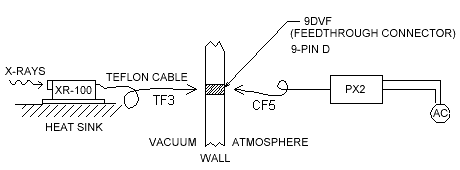

Option A

Required items

• XR-100CR or XR-100CZT
• TF3 Cable
• 9DVF Feedthrough connector
• CF5 Cable
• PX2CR or PX2CZT

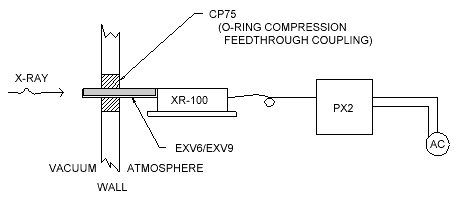

Option B

Required items

• XR-100CR or XR-100CZT
• EXV6 or EXV9
• CP75 Feedthrough coupling
• PX2CR or PX2CZT

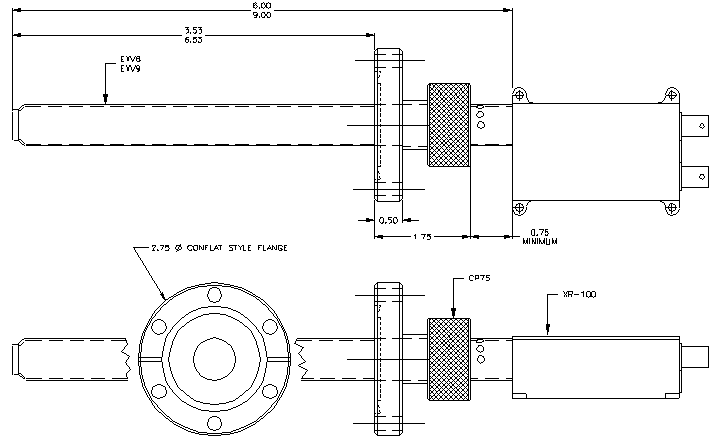

Option B Mechanical Dimensions

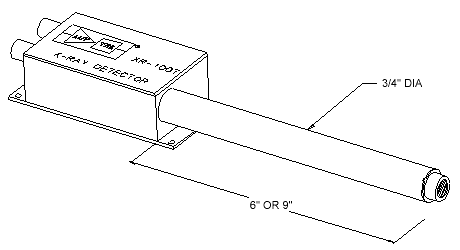

Models EXV6 and EXV9

6 and 9 inch vacuum extensions for the XR-100.

---

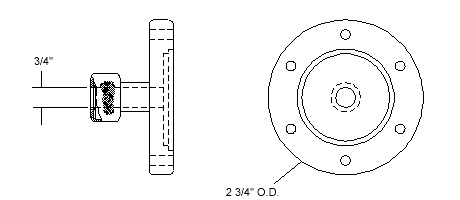

Model CP75

Vacuum feedthrough coupling on 2 3/4" Conflat for use with the EXV6 or EXV9.

---

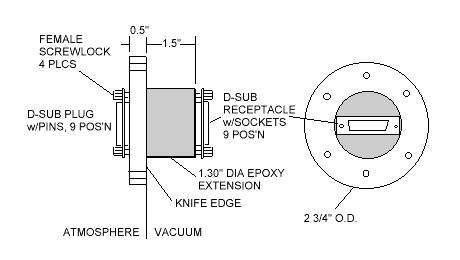

Model 9DVF

9 pin D-subminiature vacuum feedthrough connector mounted on a standard 2 3/4" stainless steel Conflat.

---

Revised February 8, 2001
