The StressTel FlawMIKE is easy-to-use with direct
access keys for all frequently used functions. One key press changes gain, turns the
backlight on, prints a report, and displays all FlawMIKE settings. The high resolution LCD
display is easy-to-read with a 60Hz update rate and excellent daylight visibility. The
rugged metal housing and sealed keypad handle the abuse of the toughest working
conditions.
Whether you are looking for delaminations in a tank bottom, pipe wall thickness through
attenuative coatings, or defects in a girth weld, choose the StressTel FlawMIKE - your
tough,
affordable, easy-to-use flaw detector. |
|
|
|
|
|
|
 |
|
|

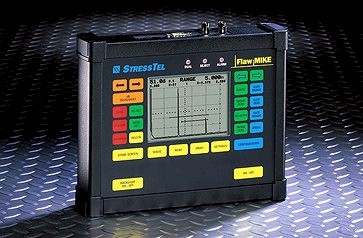

(Click on above image for detailed product
picture). |
|
|
|
|
|
|
|
|
|
|
|
Display |
|
|
| Type: |
LCD 1/4 VGA Transflective |
| Viewing Area: |
3.8"
x 3.0" (96mm x 76mm) |
| Update Rate: |
60 Hz |
| Pixel Density: |
320 x 240 |
| Contrast: |
Adjustable |
| Backlight: |
On or Off |
|
|
Description |
|
|
|
|
| Unit Size: |
9.6"
wide (244mm) |
|
7.7"
high (196mm) |
|
2.1"
deep (53mm) |
| Weight: |
5
pounds (2.27 kg) including batteries |
| Operating Temperature: |
32F
to 122F (0 C to 50 C) |
|
|
|
|
Ultrasonic
Specifications: |
|
|
|
| Frequency
(-2dB) |
0.5 to 15 Mz |
| Measuring
Range (steel) |
0.1" to 120" |
| Gain (dB) |
0 to 110 |
| Gain Steps (dB) |
Choice of 0.5, 1, 2 or 6 |
| Rectification |
Fullwave |
| Test Modes |
Selectable - pulse echo or dual |
| Damping (ohms) |
Selectable - 50 or 500 |
| PRF |
100
to 1000 Hz (10 steps) |
| Pulser Power |
Selectable
- Low or High |
| Reject |
0 to 80% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gates |
|
|
|
| Number |
2 (2nd depends on 1st) |
| Logic |
Selectable
- Positive, Negative or Multi |
| Alarm |
Red
LED |
|
|
|
|
Power |
|
|
|
| Power |
A.C.
Mains or Batteries |
| Battery Type |
4 "C" size NiCad or Alkaline |
| Battery Life |
8
hours (w/o backlight)
6 hours (with backlight) |
|
|
|
|
Trig
Functions |
|
|
|
Calculates sound path, projection distance,
and flaw depth |
|
|
|
Digital
Thickness Mode |
|
|
|
Two Gates - Echo to Echo |
|
|
|
Memory |
|
|
|
80 sequential locations |
|
|
|
On-Screen
Amplitude Measurement |
|
|
|
% full screen height |
|
|
|
Direct
Reports |
|
|
|
Via RS 232 Port
Epson, Laser, DeskJet, DPU compatible |
|
|
|
|
|
|
|
|
English, German,French,Spanish, Italian |
|
|
|
|
|
|
|
Selectable - Inch or Metric |
|
|
|
|
[ |
|
