SmartLoggers^TM are monitoring tools designed to record the time-of-use and run-time of devices. Use them to :

• Evaluate retrofits and verify savings


• Answer peak impact questions


• Calculate energy consumption


• Provide operations feedback of end-users


• Verify the proper operation of energy management systems

Manufacturer's Declaration of Conformity

To take a look at the certifications and standards that the SmartLoggers meet click here.

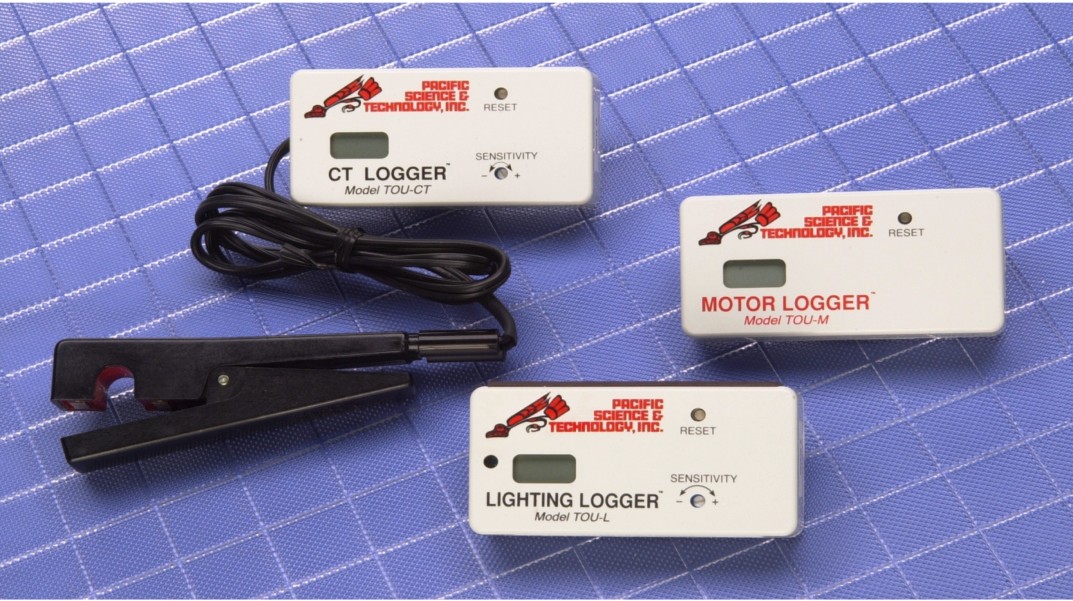

Use SmartLoggers^TM to monitor lights, occupancy patterns, motors, water heaters, heat pumps, air conditioners, appliances, fans, and other devices. Choose one of the following types:

Time-Of-Use (TOU) Specifications

Size........................................ 1" x 2" x 4" Weight.................................... 4 ounces Mounting................................. Lighting LoggerTM - Magnetic Strip with 32 oz. pull; All others come with velcro strip Display.................................... 2 digit LCD display ("ON" when recording, blank when "OFF") Units....................................... Time stamps record in month, day, year, hour, minute, and second internally in the logger Power..................................... Battery, factory installed with 10 year lifetime Operating Environment............. 0°C to 60°C, non-condensing humidity Memory Capacity.................... 8,192 records, ring memory Communication........................ RS-232 using the SmartLoggerTM Interface Cable Resolution................................ One second Sensitivity................................. Lighting LoggerTM - adjustible to various levels; Motor LoggerTM - above 40mGauss; CT LoggerTM - above 1/4 amp Accuracy................................. Better than one minute per month Data Analysis........................... Software provides statistics, graphs, and the ability to export to spreadsheet programs or ASCII & PCX formats Warranty.................................. One year
