Medical X-Ray Tube Spectra
for Mammography and Radiology

X-Ray Tube Monitor for Mammography Machines

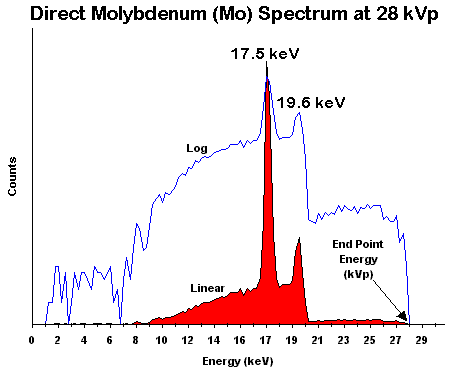

[molybdenum spectrum]

X-Ray Tube Monitor for Radiology Machines

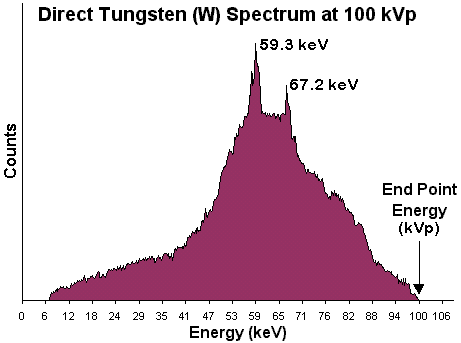

[W Spectrum]

Spectra Courtesy of
Dr. Andrew Karellas Ph.D
University of Massachusetts Medical School
Worcester, MA. 01655 USA

  • Direct Measurement Spectra

  • End Point Energy (kVp)

  • See what the patient gets

    • NO Compton Spectra
    • NO Corrections
    • NO Calculations

  • Self-Calibrating System

  • Look straight at the X-Ray tube and record simultaneously both the spectrum and the peak potential (kVp)

  • The technology that went to Mars on the Pathfinder Mission is now available to Radiology!

  • A must detector for every Radiology Department

  • For Quality Assurance in Radiographic and Fluoroscopic Systems

  • No Liquid Nitrogen

Design Objective

This detector system was designed with the objective of simultaneously measuring the X-Ray tube peak potential (kVp), and to characterize the mammographic X-Ray tube spectrum.

Significance of the Measurement

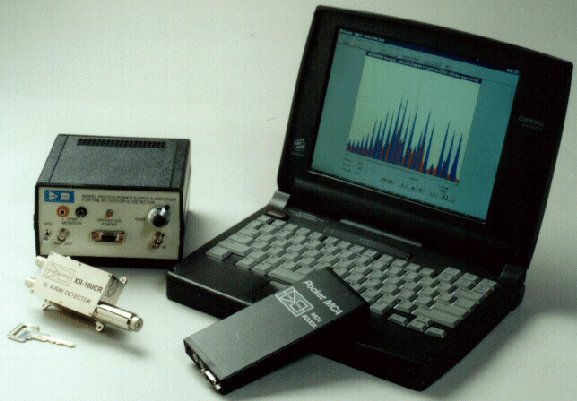

Complete System Includes:


XR-100T-CZT system shown
with Amptek MCA8000A Multichannel Analyzer
and a notebook computer
All Solid State Design - - - No Liquid Nitrogen!!!

System Description

The XR-100T-CZT is a high performance X-Ray and Gamma Ray detector mounted on a thermo-electric cooler (Peltier type) together with the input FET to the preamplifier. Monitored by an integrated circuit, these components are kept at -30° C and are enclosed in a hermetic package with a vacuum tight, light tight Beryllium window. Power and signal processing to the detector is provided by the PX2T-CZT in order to ensure quick, stable operation in less than one minute from power turn-on. The output pulse produced by the PX2T-CZT connects directly to the input of the Multichannel Analyzer MCA8000A "Pocket MCA."

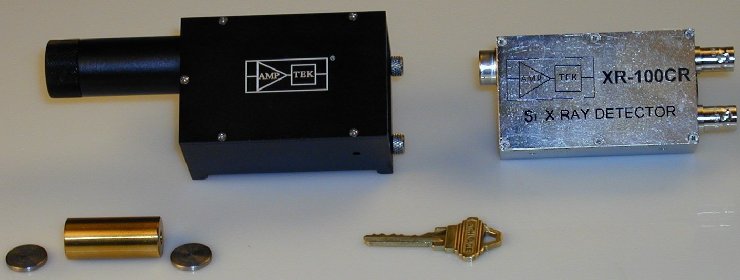

Collimator Kit

Amptek has developed a Collimator Kit to collimate the primary X-ray beam. This system is comprised of a special Detector/Preamp box (TJ BOX) which slides inside a Collimator Housing. The Collimator Housing can accommodate up to two Tungsten collimator disks that are placed inside a bayonet holder in front of the detector. By selecting the appropriate Tungsten collimator disks, the user can reduce the incoming X-ray flux and allow the detector and electronics to process the X-ray spectrum. Seven different Tungsten collimator disks are provided with different size holes (ranging from 25 µm to 2,000 µm hole) in order to allow for a wide range of applications. The Collimator Housing is made out of brass in order to shield the detector and electronics from the primary X-ray source. Additionally, the bottom of the Collimator Housing incorporates a screw type fitting to allow for a standard tripod mount.

References

  1. Matsumoto, Massao, et al. Direct measurement of mammographic x-ray spectra using CdZnTe detector, Medical Physics 27 (7), July 2000. p. 1490.
  2. Vedantham, Srinivasan, et al. Mammographic imaging with a small CCD-based digital casette: Physical characteristics of a clinical system, Medical Physics 27 (8), August 2000.
  3. Vedantham, Srinivasan, et al. Full breast digital mammography with an amorphous silicon-based flat panel detector: Physical characteristics of a clinical prototype, Medical Physics 27 (3), March 2000.

Medical X-Ray Detector Specifications and description in PDF format (418k)
