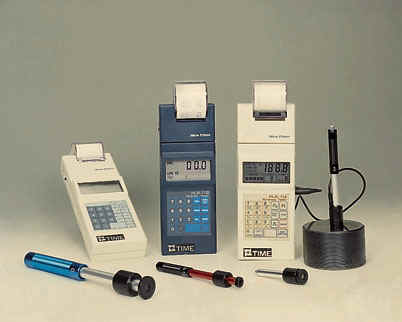

LEEB'S HARDNESS TESTER HLN-11

Brief

HLN-11 is an advanced hand-held hardness distinguished by its high accuracy,wide measuring range,and simplicity of operation. It is suitable for testing on various conditions and environments.

Typical Applications

• In-situ testing of individual parts,or components in assembled machines
• Mould surface of a die
• Heavy components e.g.rolls for rolling mills, etc.
• Quick analysis of pressure vessels, turbo-generator sets,etc.
• Testing in a production line e.g.crank-shafts,cylinder blocks,etc.
• Material identification

Functions Available

• Display test results in all various hardness scales(HRB,HRC,HB,HV,HSD,HL)
• Test in any angle,even up-side-down
• Convert to Ultimate Tensile strength
• Immediate cover between harness scales,and print-out of desired
• Input of test number on date
• Input print-out of material type, and test direction Print-out of test results via integral printer if needed
• Battery low individual Protective carrying case complete with test block,supporting,cleaning brush,battery charger
• Seven impact device available: D ,DC ,DL ,D+15 ,C ,E ,G

Technical Specification

• Overall dimension: 270×86×47mm
• Total weight: 650g(including impact device and printer)
• Operating temperature: electronics: -10 to +45°C ; impact device:-20 to +120°C
• Tolerance: ±0.8%
• U.T.S. Measuring range: 370-2000[10N/m]

For more information contact us

TH130/132/134 INTEGRATED LEEB'S HARDNESS TESTER

Brief

TH series are advanced integrated hardness tester distinguished by its very compact size,high accuracy,wide measuring range and simplicity of operation.They are suitable for testing on various conditions and environments.

Typical Applications

• In situ testing of large and/or heavy components,items already installed as parts of machines
• During manufacture,especially of mass produced components
• In the stores for material identification
• In locations with difficult access,or in confined spaces

Technical Data

TH130

• Size:150×22×53mm
• Impact device:D
• Impact energy:11Nmm
• Test tip: Tungsten Carbide
• Measuring accuracy:mean uncertainty ±1.5%
• Weight:130g
• Operating time :8 hours continuous use/rechargeable
• Impact direction:any angle
• Operating temperature:0°C to +50°C

TH132

• Size:155×24×55mm
• Impact device:Integrated model C1
• Impact energy:2.7Nm
• Test tip:Tungsten carbide
• Measuring accuracy:±1%
• 8 hours for continuous use/rechargeable
• Impact direction:0°,45°,90°
• Operating temperature:0°C to 45°C

TH134

• Size:210×24×55mm
• Impact device:Integrated model DL1
• Impact energy:11Nm
• Test tip:Tungsten carbide
• Measuring accuracy:±1%
• Weight:200g
• Operating hours:8 hours for continuous use/rechargeable
• Impact direction:any angle
• Operating temperature:0°C to 45°C
