T-Mike ES


	[Features][Display][Description][Material][Power Supply] [Operation][Kit Contents][Warranty]

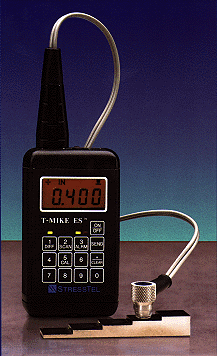

		The StressTel T-Mike ES is a compact, easy-to-use, and rugged thickness gauge. The T-Mike ES features high speed scanning for minimum thickness capture; an adjustable alarm illuminates LEDs to alert the operator when thickness values are above or below a set value; and a difference function displays the positive or negative difference between the thickness measurement and preset value. Data Send enables continuous or command sending of thickness readings to printers and PC´s. Other key features include: auto calibration; sealed case; amber colored display; measuring range of 0.025 inches to 19.999 inches; 3000 hours batter life with (4) alkaline or NiCad "AA" batteries and two year warranty.


	The T-Mike ES is supplied with 1/4" x 5 MHz dual element transducer. The transducer has a potted four-foot, wear resistant cable with lemo quick disconnect connector. StressTel offers a wide range of other transducers to meet your application requirements.

Unit Features

1.	Lemo quick-disconnect connectors
2.	Battery charger connector/data port.
3	Built-in auto-probe zero block.
4.	Coupling Indicator
5.	Backlit LCD indicates modes, measurements and icons.
6	Durable lightweight aluminum case.
7.	Weather resistant sealed keypad.
8.	Power key.
9.	Alarm key enables LEDs.
10.	Send key for transmission of current readings.
11.	Numeric keys.
12.	Material calibration key.
13.	Scan key enables allows rapid scanning and minimum thickness capture.
14.	DIFF key enables display of positive or negative difference to preset value.
15.	Red and Green LED indicators.
16.	Operator selectable Metric (MM) or English (IN) units.

Display

Measurements:	4 1/2-digit amber backlight LCD readout.
Coupling Check:	NO ECHO display.
Battery Check:	LOW BAT display flashes to indicate battery replacement.
Units:	English/Metric selectable IN or MM displayed

Description

Unit Size:	2.5 inches wide (64 mm) 4.5 inches long (114 mm) 1.25 inches deep (33 mm) 11 ounces (312 grams)
Case:	Sealed aluminum case.
Keyboard:	Water resistant keypad.

Material

One step calibration for steels, aluminum, metals, glass and plastics.

Power Supply


	Four AA alkaline or NiCad batteries. Interchangeable and easy to access. Approximately 300 hours of continuous operation - 80 hours with backlight.


	Operation

Measuring Range:	0.025 to 19.99 inches (0.635 mm to 507 mm) depending on transducer, surface condition, temperature and material.
Display Resolution:	0.001 inch (0.01mm).
Material Velocity range:	0.01 to 0.59 inches per micro-second.
Allowable Surface Temperature:	0° F to 300° F (-18° C to 150° C) High temperature probes available to 650° F.
Scan Mode:	Displays minimum thickness during scanning.
Red LED:	LED illuminates when reading falls below set target range.
Green LED:	LED illuminates to indicate acceptable reading.
Diff:	Displays positive or negative difference to preset value.

T-Mike ES Kit Contents

*	T-Mike ES Ultrasonic Thickness Gauge.
*	1/4" x 5 MHz Transducer (style user selectable from list).
*	Operation Manual.
*	Four "AA" Batteries (Alkaline or NiCad).
*	Battery Charger (if NiCad battery operated).
*	Plastic Instrument Accessory Case.
*	Certificate of Calibration.

Warranty

All T-Mike Corrosion Thickness Gauges have a full two-year warranty on parts and labor excluding batteries, transducer and cable. Specifications subject to change without notice.
