Model 35-450 Brinell Scope

A small portable Brinell scope provides a low-cost tool for measuring Brinell impressions.

• Dimensions: 4-7/8" tall with nominal 1/2" diameter x 20X objective.
• No focusing capability is provided.
• Reticule scale divisions: 0.1 mm.
• Reticule scale length: 6.0 mm.
• Uses [1] AAA battery.

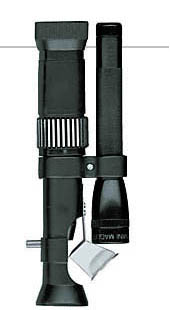

Model 3620 Brinell Scope

A large portable 20X Brinell scope provides high quality measurement of Brinell impressions.

• Dimensions: 7-1/8" tall with nominal 3/4" diameter x 20X objective
• Focus adjustment for reticule and test surface.
• Reticule scale divisions: 0.1 mm.
• Reticule scale length: 7.0 mm
• Uses [2] AA battery.
