Thanks to its proprietary Piezocomposite
technology, Imasonic is a world leader in phased array ultrasonic probes
(see phased
array concept page )
Due to their structure, Piezocomposite 1-3
materials permit high insulation between each element of a phased array probe.
These materials also avoid unexpected radiations, like lateral modes. The result
is a beam corresponding to the simulations, and a very high precision
beam steering capability.
Imasonic's wide range of materials allow us to
manufacture phased array probes in a frequency range from 300 KHz to 18
MHz, while maintaining all other performances of this technology.
Combined with our 8 years experience in Piezocomposite Industrial phased array
probes, these performances are available for a wide range of configurations
Several options can be combined with these
different configurations
- Mechanical focusing of the active area :
cylindrical, spherical or aspherical
- Assembly with integrated or removable wedge
- Integration of electrical impedance matching
or electronic components (multiplexors, preamplifiers, ...)
- Housing adapted to fit the probe holder
- Adaptation to environmental conditions
(temperature, pressure, nuclear radiation...)
Imasonic phased array probes can be adapted to all
phased array electronic systems on the market.
Linear arrays
 |
- 128 element linear phased array
- Cylindrically focused active area
|
- 32 element linear phased array
- Miniaturized probe
- Flat active area
- High frequency : 17 MHz
|
 |
 |
- 16 element linear array
- Aspherically focused active area to
focus through a toroidal interface
- Soft material wedge to match a
toroidal interface
|
- 2x12 element phased array
- Flat active areas with roof and skew
angles
- Integrated wedge
- Anti reverberation system
- Water irrigation system.
|
 |
 |
- 16 element phased array
- removable wedge
- Anti reverberation system
- Water irrigation system
|
Annular arrays
- 8 element annular phased array
- flat active area
|
 |
Matrix arrays
 |
- 3 x 3 element matrix phased array
- Flat active area
- Miniaturized housing
|
- 121 element matrix phased array
- Aspherical surface to focus through a
cylindrical interface
- Integrated eletrical impedance
matching for 121 elements
|
 |
Ring arrays
 |
- 80 element ring arrays
- High frequency : 10 MHz
- Aspherically focused active area
- Integrated multiplexer and
preamplifier in probe head
|

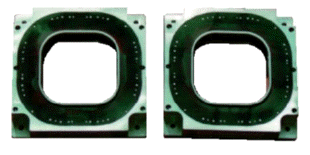

- 2 x 400 element ring phased arrays
- Flat active area
- Work in cantact with integrated soft
material wedge
|
 |
