The KLM model is used to simulate the structure of the transducer, including
  • The piezocomposite properties
  • The front face and acoustic medium properties
  • The transducer internal materials properties
  • The electrical matching components & cable
 Electrical Impedance Simulation
Temporal and Spectral analysis These two figures shows two output informations for a 10 MHz transducer

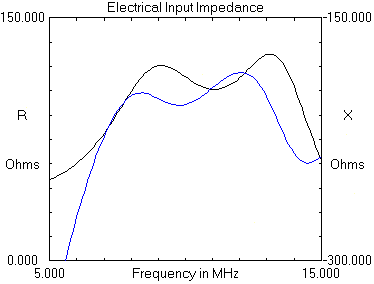

  • Real and Imaginary electrical impedance according to the frequency (top)
  • RF echo and frequency response in transmit/receive mode (left)
